Turning Vane & Track

Turning Vane is designed to provide economical air turns, with a smooth external face thereby reducing friction loss and noise generation. Vane is roll formed from a single strip to alleviate problems of splitting, with a continuous seam joint forms a rigid section, adding strength to the associated bend. ‘Fastrac’ fixing track is prepunched at 60mm centres to ensure constant spacing of vane. With the unique ‘Fastrac’ fixing tool allows rapid assembly without the need for riveting or spot welding.

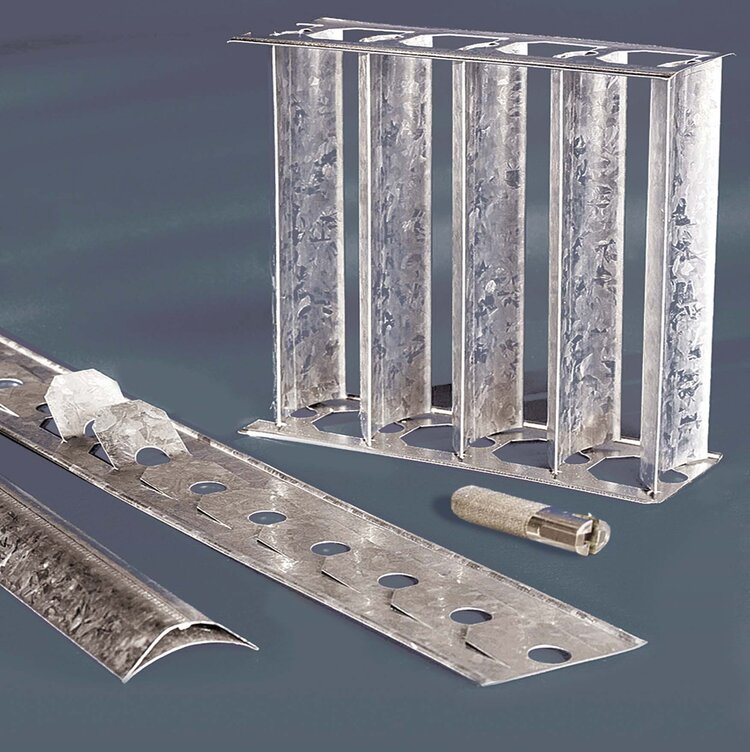

  • TURNING VANE SYSTEM
    TURNING VANE SYSTEM
    • ‘Aerofoil’ Turning Vane (ref. DS100) gauge - 0.5mm.
    • Weight per metre (Kg) - 0.587.
    • Finish - Galvanised.
    • Lengths available - Bundles of 30m or 300m, 3 metre standard lengths.
    • ‘Fastrac’ (ref. DS101) gauge - 0.7mm.
    • Weight per metre (Kg) - 0.533.
    • Finish - Galvanised.
    • Lengths available - Bundles of 30m or 300m, 3 metre standard lengths.
    • Fixing Tool (ref. DS104) are supplied individually.
    • Fixing Tool replacement tips (ref. DS105) are also available.
