HVAC

HVAC Accessories

HVAC Accessories encompasses everything that might be required in addition of the ductwork profiles and corners etc. Doby Verrolec supply a number of these addtional components and are making more available all the time.

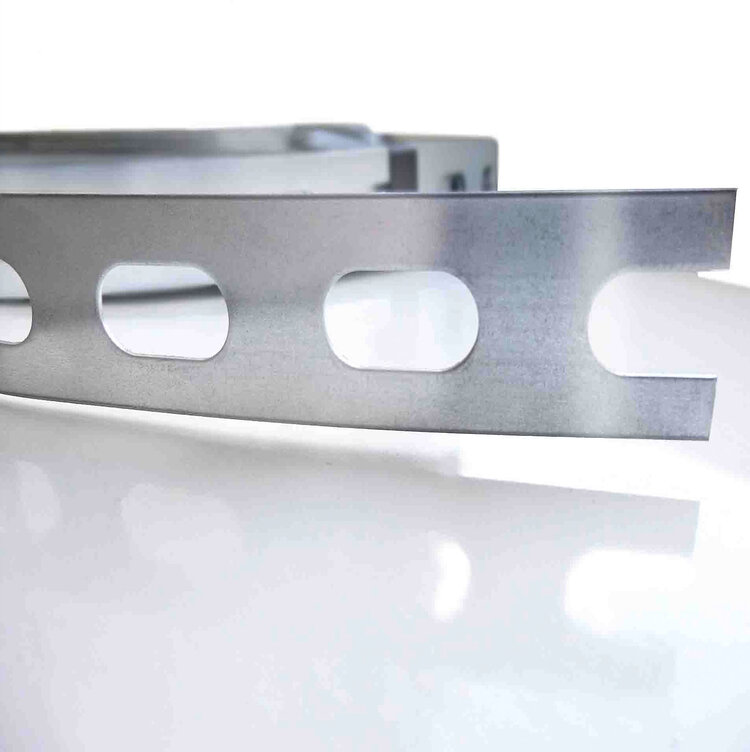

  • SLOTTED SUPPORT BANDING
    SLOTTED SUPPORT BANDING
    • ‘Dobystrap’ slotted support banding is a low cost method for suspending fixed loads, such as ductwork, air handling units, fans, pipe work and electrical trunking and cables.
    • Support banding is manufactured from galvanised mild steel to reduce the possibility of corrosion.
    • Our support banding is supplied in 30m coils.
    • Product reference: DS003
    • Slotted Banding 25mm x 0.8mm x 30m
    • Length Bundle Size: 30m Reels x 5 Reels

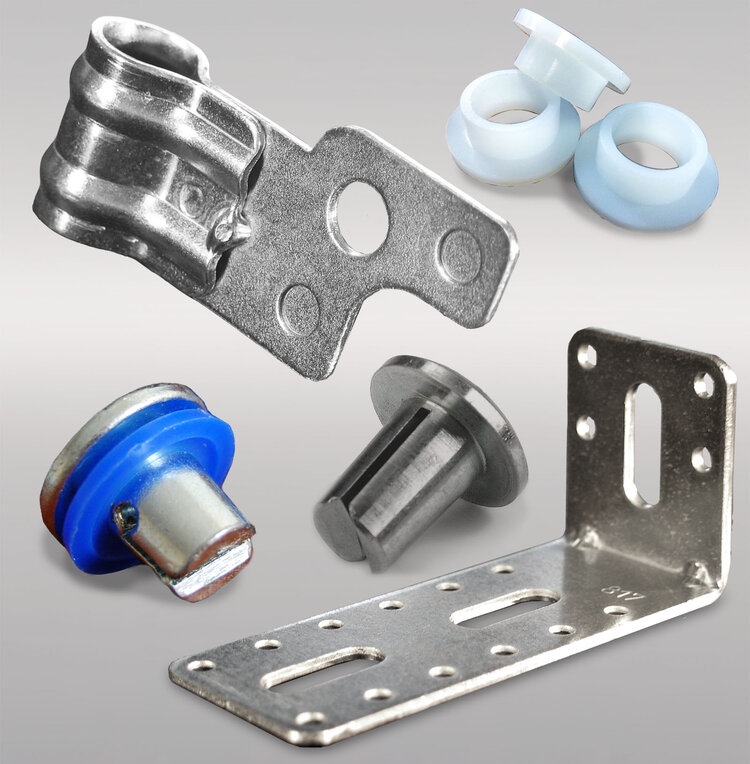

  • DUCT SUPPORTS & FASTENERS
    DUCT SUPPORTS & FASTENERS
    • Our Duct Support Brackets are ideal for use when duct supports are not to be used on the underside of ductwork, or due to limited space.
    • The 900 and 901 Duct Support Brackets are suitable for use with our anti-vibration nylon bushes.
    • Our Sheet Metal Fasteners allow the rapid assembly of ductwork splitters and air turns.  They also enable purpose made louvres to be fabricated in a fraction of the time of traditional methods.
    • Product reference: DS513 Fastener & Washer, gauge: 22 - 18, size: 0.77 - 1.25
    • Product reference: 300 (Size 0 Splitter Pin), gauge: 25 - 20, size: 0.40 - 0.90
    • Product reference: 301 (Size 1 Splitter Pin), gauge: 22 - 18, size: 0.70 - 1.20
    • Product reference: 302 (Size 2 Splitter Pin), gauge: 17 - 14, size: 1.40 - 2.00
    • Product reference: 305 Blue Seal Rivets, gauge: 24 - 18, size: 0.50 - 1.13
    • Product reference: 900 Duct Support Bracket, gauge: TBA, size: TBA
    • Product reference: 901 Duct Support Bracket, gauge: TBA, size: TBA

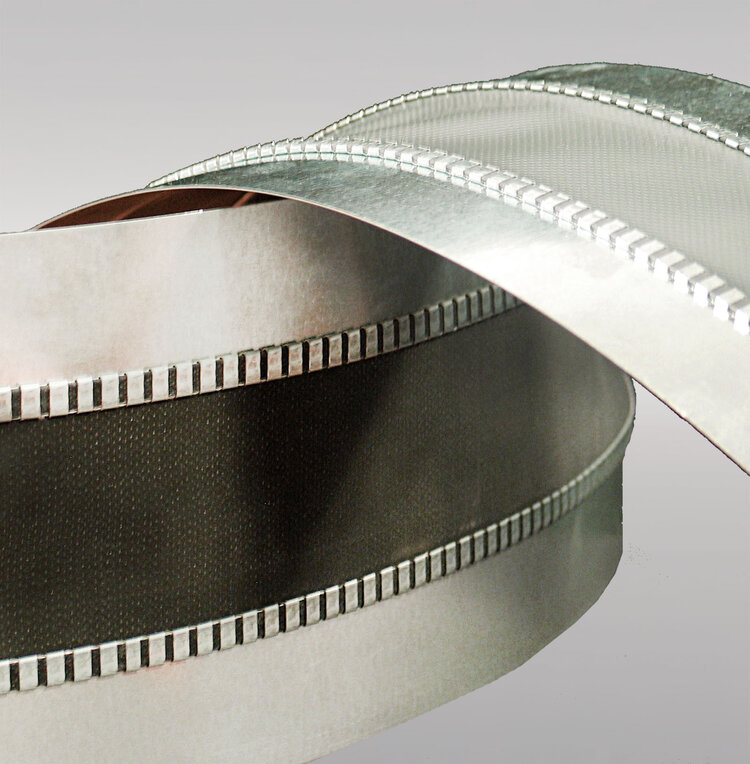

  • FLEXIBLE DUCTWORK CONNECTOR
    FLEXIBLE DUCTWORK CONNECTOR
    • Our Flexible Duct Connector allows the rapid manufacture of flexible joints to prevent vibration transfer between ventilation, air conditioning equipment and associated ductwork.  Pre-assembled flexible duct connectors are available for Doby or VerroFlange Ductwork Systems, complete with appropriate mating flanges where applicable.
    • Flexible Duct Connector is available in rolls of 25m and is also available in a fire-rated material.
    • Product reference: DS109 Flexible Duct Connector x 25m and DS110 Fire Rated Flexible Duct Connector x 25m.
  • FACT SHEET - DOBY GREEN GASKET
    FACT SHEET - DOBY GREEN GASKET

    These are technical fact sheets covering a few of our products. For further information beyond what you can find in the sheets, then please call our sales office on: +44 1207 288012
