Rectangular Duct Profiles & Corners

Rectangular ductwork profiles and corners are the means to join lengths of ductwork together and enable a near airtight seal between the pieces. Typically, this would be done using four lengths of profile each connected with a corresponding corner producing a frame. The frame is then attached to the next frame and so on.

  • XCEL DUCTWORK JOINTING PROFILES

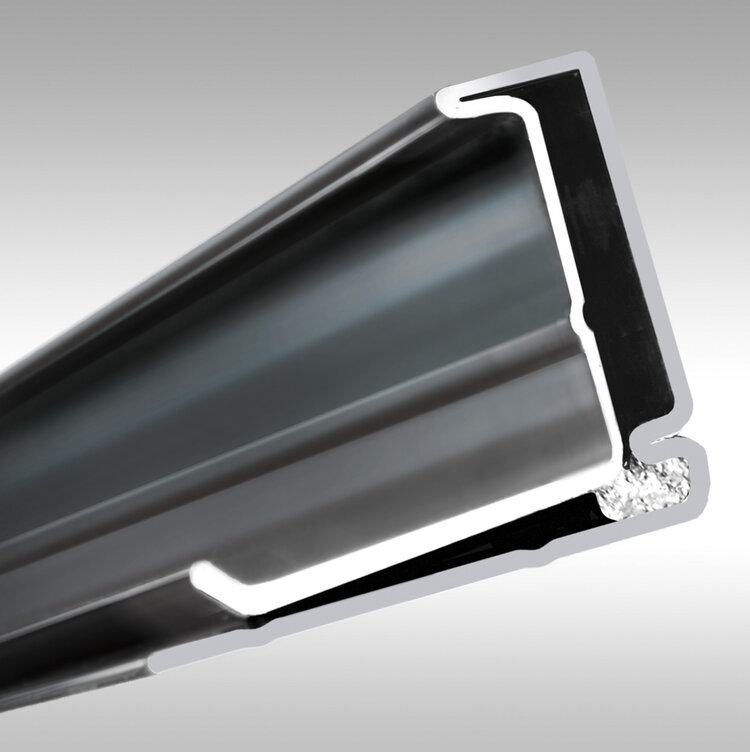

    XCEL DUCTWORK JOINTING PROFILES
    • Provides for rapid assembly of cross joints.
    • Integral pocket with permanently flexible non toxic sealant.
    • Available in standard Euro sizes of 20mm, 30mm and 40mm.
    • Fully conforms to UK, B&ES Specification DW/144 (2013).
    • Awarded Quality Assurance Certification BS EN ISO 9001.
    • Full range of accessories to suit all sizes of flange.
    • Tested & certified by BSRIA in accordance with the B&ES (formally HVCA) test procedures DW/TM1.
    • Suitable for B&ES specification DW/144 for Joint Ratings up to J4 and pressure classes A, B & C.

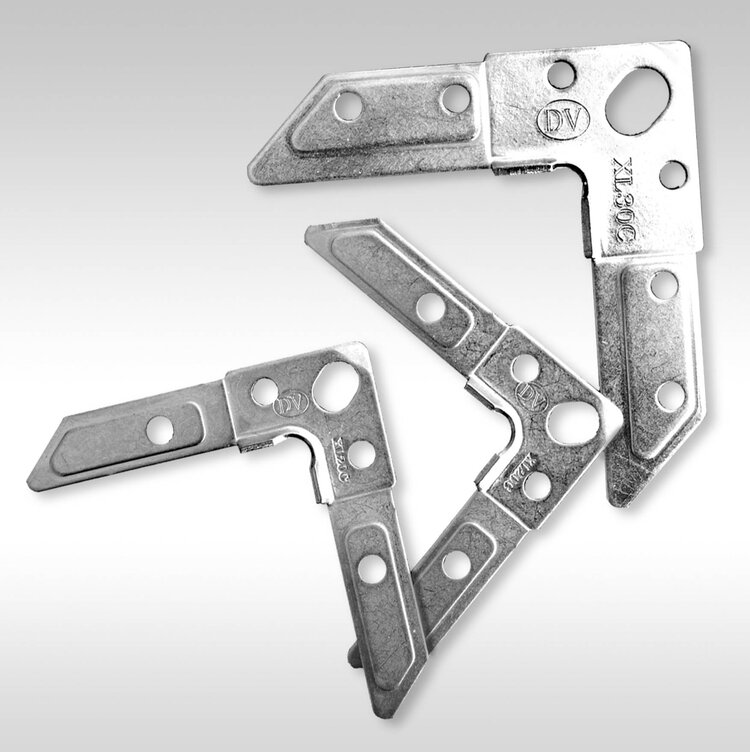

  • XCEL DUCTWORK JOINTING CORNERS
    XCEL DUCTWORK JOINTING CORNERS
    • XL20C - 2.3mm gauge corner piece
    • XL30C - 2.3mm gauge corner piece
    • S40/12U - 3.0mm gauge corner piece
    • Steel Grade EN 10111:1998-DD11 Pickled & Oiled Finish - Zinc and clear passivate to BS EN 12329-Fe/Zn5/A.
  • DOBY DUCTWORK JOINTING PROFILES

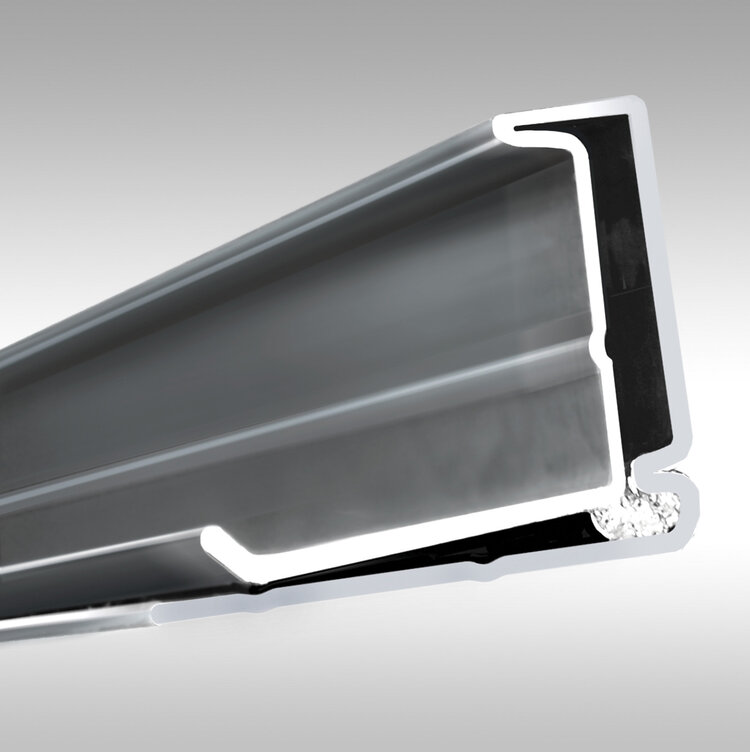

    DOBY DUCTWORK JOINTING PROFILES
    • Provides for rapid assembly of cross joints.

    • Integral pocket with permanently flexible non-toxic sealant.

    • Available in standard Euro sizes of 20mm, 30mm and 40mm.

    • Fully conforms to UK, B&ES Specification DW/144 (2013).

    • Awarded Quality Assurance Certification BS EN ISO 9001.

    • Full range of accessories to suit all sizes of flange.

    • Tested & certified by BSRIA in accordance with the B&ES (formally HVCA) test procedures DW/TM1.

    • Suitable for B&ES specification DW/144 for Joint Ratings up to J6 and pressure classes A, B, C & D.

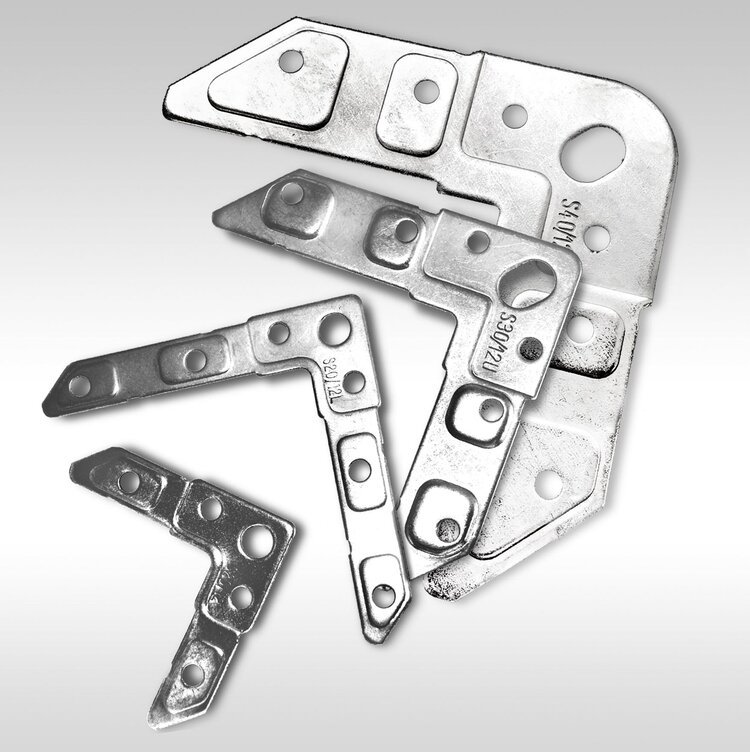

  • DOBY DUCTWORK JOINTING CORNERS
    DOBY DUCTWORK JOINTING CORNERS
    • S20/12U - 2.3mm gauge corner piec
    • S20/12LU - 2.3mm gauge corner piece
    • S30/12U - 2.3mm gauge corner piece
    • S40/12U - 3.0mm gauge corner piece
    • Steel Grade EN 10111:1998-DD11 Pickled & Oiled Finish - Zinc and clear passivate to BS EN 12329-Fe/Zn5/A.
  • VERROMAX DUCTWORK JOINTING PROFILES
    VERROMAX DUCTWORK JOINTING PROFILES
    • Permanently flexible non-toxic sealant injected into the profile during manufacture, will not harden and crack post installation.
    • Available in standard metric sizes of 20mm, 30mm and 40mm.
    • Fully conforms to UK, HVCA specification DW144 and awarded Quality Assurance Certification BS EN ISO 9001.
    • No need to switch flange regardless of joint rating and pressure class.
    • Tested and certified by BSRIA in accordance with the B&ES (formally HVCA) test procedures DW/TM1.
    • Suitable for B&ES specification DW/144 for Joint Ratings up to J5 and pressure classes A, B and C.
    • Z275 gram coating to steel giving anti-corrosion benefits, Full range of accessories to suit all sizes of flange.
    • Choice of material types and gauges, available in Stainless Steel & Aluminium on request.

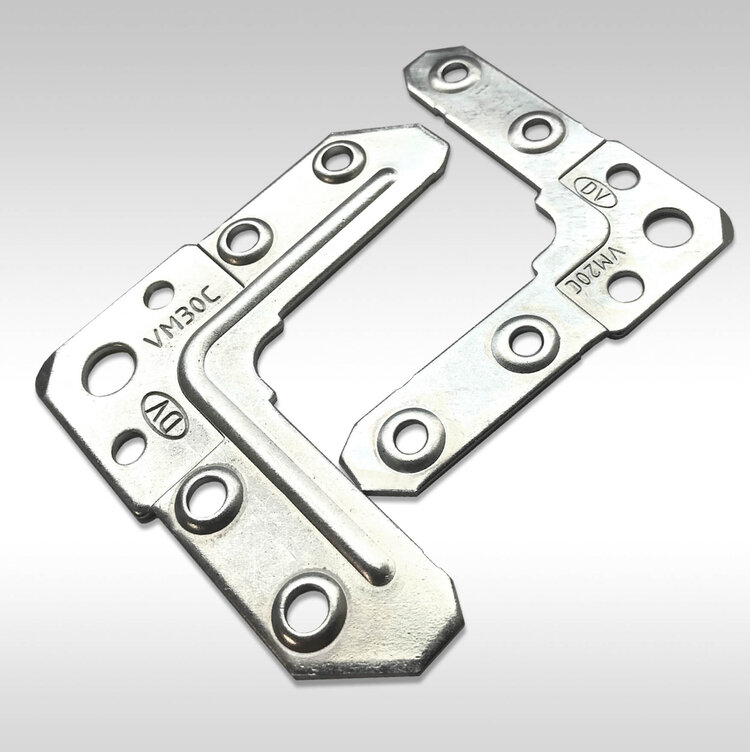

  • VERROMAX DUCTWORK JOINTING CORNERS
    VERROMAX DUCTWORK JOINTING CORNERS
    • VM20C - 2.0mm gauge corner piece
    • VM30C - 3.0mm gauge corner piece
    • VF40C - 5.0mm gauge corner piece
    • Steel Grade EN 10111:1998-DD11 Pickled & Oiled Finish - Zinc and clear passivate to BS EN 12329-Fe/Zn5/A.

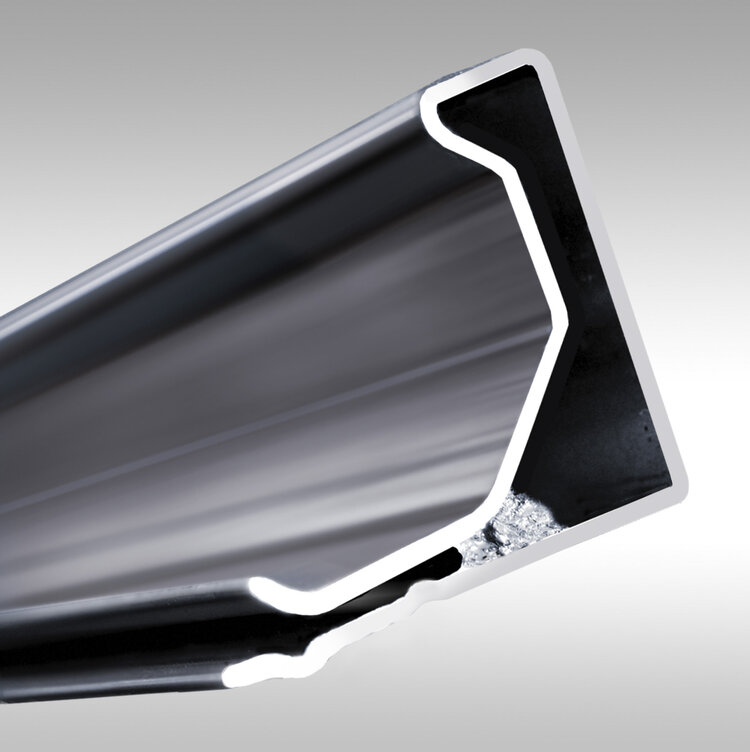

  • VERROFLANGE DUCTWORK JOINTING PROFILES
    VERROFLANGE DUCTWORK JOINTING PROFILES
    • Provides for rapid assembly of cross joints.
    • Permanently flexible non-toxic sealant injected into the profile during manufacture.
    • Available in standard metric sizes of 20mm, 30mm and 40mm.
    • Fully conforms to UK, HVCA specification DW144, awarded Quality Assurance Certification BS EN ISO 9001.
    • Full accessory range to suit all sizes of flange, choice of material types and gauges.
    • Tested and certified by BSRIA in accordance with the B&ES (formally HVCA) test procedures DW/TM1.
    • Suitable for B&ES specification DW/144 for Joint Ratings up to J6 and pressure classes A, B, C and D.

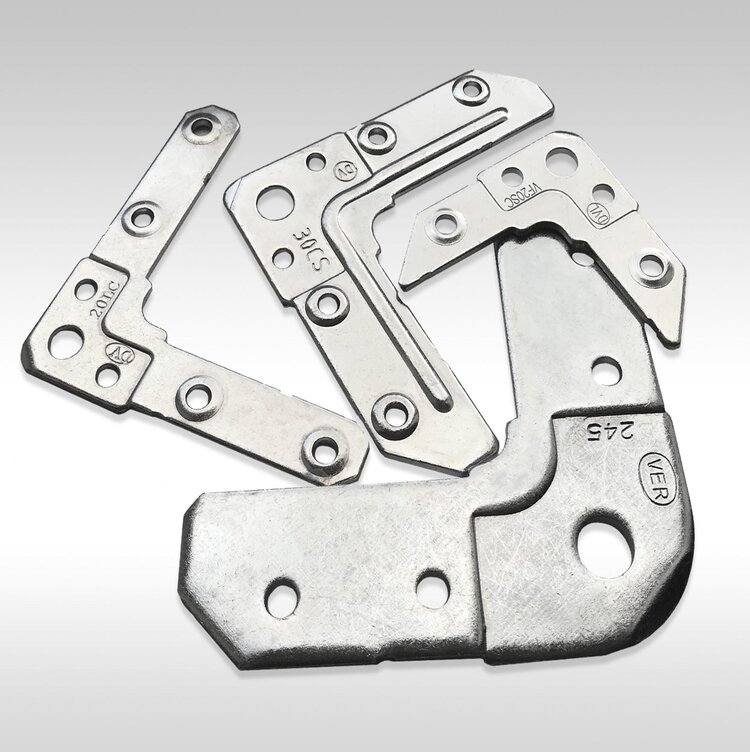

  • VERROFLANGE DUCTWORK JOINTING CORNERS
    VERROFLANGE DUCTWORK JOINTING CORNERS
    • VF20SC - 2.5mm gauge corner piece
    • VF20LC - 2.5mm gauge corner piece
    • VF30C - 3.0mm gauge corner piece
    • VF420C - 5.0mm gauge corner piece
    • Steel Grade EN 10111:1998-DD11 Pickled & Oiled Finish - Zinc and clear passivate to BS EN 12329-Fe/Zn5/A.
  • DOBY 45 DUCTWORK JOINTING PROFILE

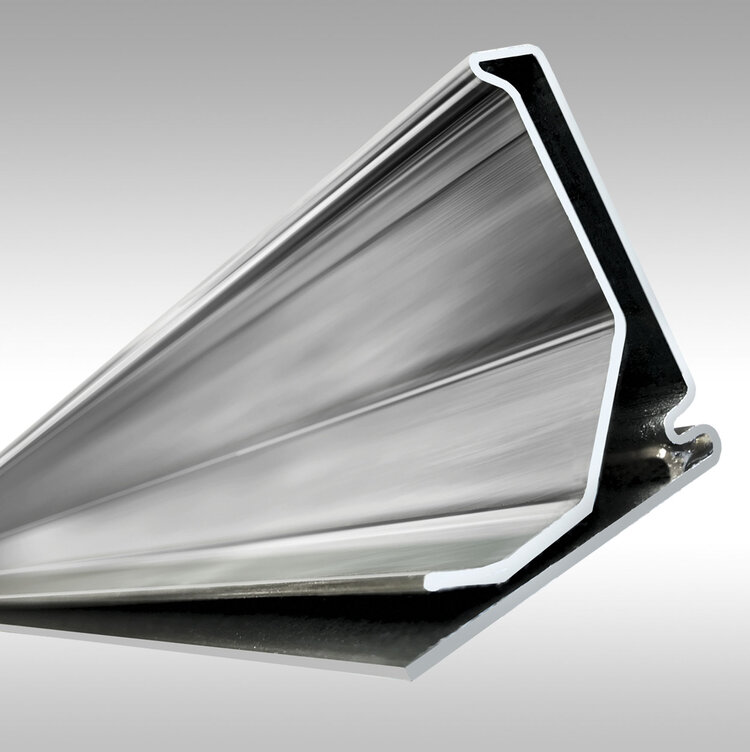

    DOBY 45 DUCTWORK JOINTING PROFILE
    • Provides for rapid assembly of cross joints.
    • Integral pocket with permanently flexible non-toxic sealant.
    • Height nominal 45mm.
    • Fully conforms to UK, BESA Specification DW/144 (2013), awarded Quality Assurance Certification BS EN ISO 9001.
    • Full range of accessories to suit flange profile.
    • Tested & certified by BSRIA in accordance with the BESA (formally HVCA) test procedures DW/TM1.
    • Joint rating is J5 for all pressure classes and J6 for low pressure. When using a centrally fitting tie bar the Doby 45, profile increases to J6 for medium and high pressure.

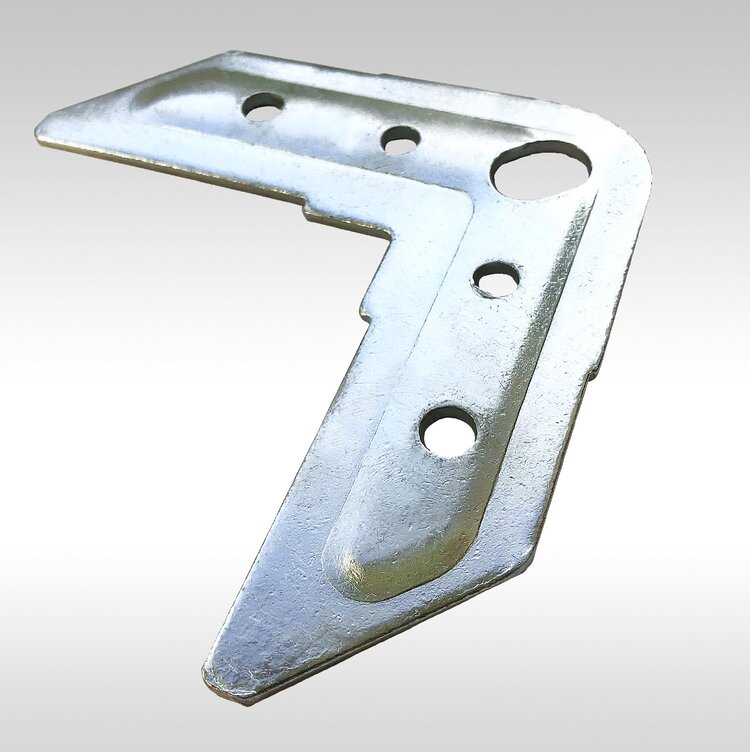

  • DOBY 45 DUCTWORK JOINTING CORNER
    DOBY 45 DUCTWORK JOINTING CORNER
    • DV45C - 3.0mm gauge corner piece

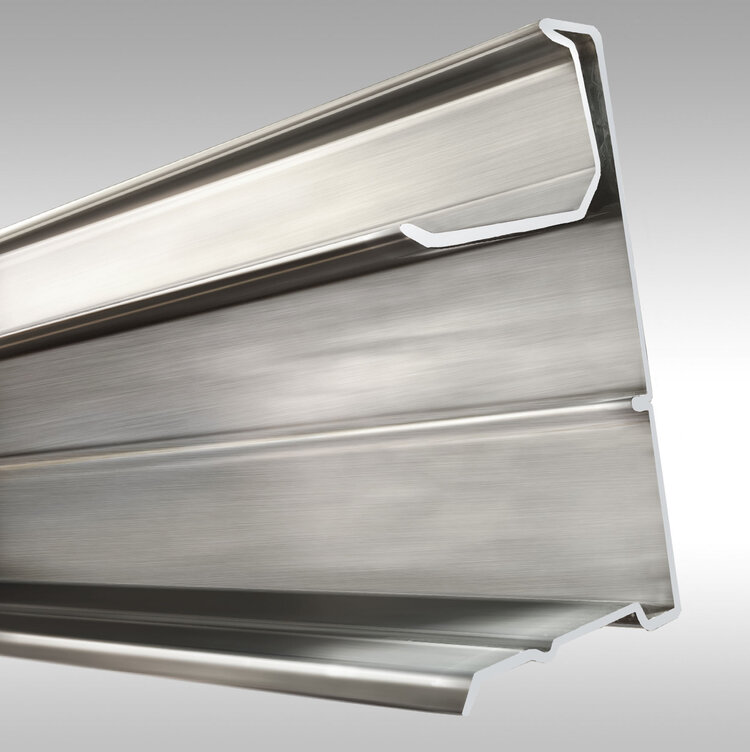

  • PRE-INSULATED DUCTWORK JOINTING PROFILES
    PRE-INSULATED DUCTWORK JOINTING PROFILES
    • Provides for rapid assembly of cross joints in pre-insulated duct systems.
    • Available to suit 20-30mm pre-insulated duct board.
    • Fully conforms to relevant UK, HVCA ductwork specification.
    • Allows installation/fixing in line with conventional steel ductwork installation.
    • Complete with purpose designed corner pieces. Full range of accessories to suit all sizes of flange.
    • Tested in accordance with HVCA test procedures.
    • Suitable for all pre-insulated duct systems, optional pre-drilled fixing holes.
    • Complete also with purpose designed Dutch Bend to prevent air leakage from completed installation.
    • A substantial time saving on both manufacture and installation compared to conventional ‘grip’ system.

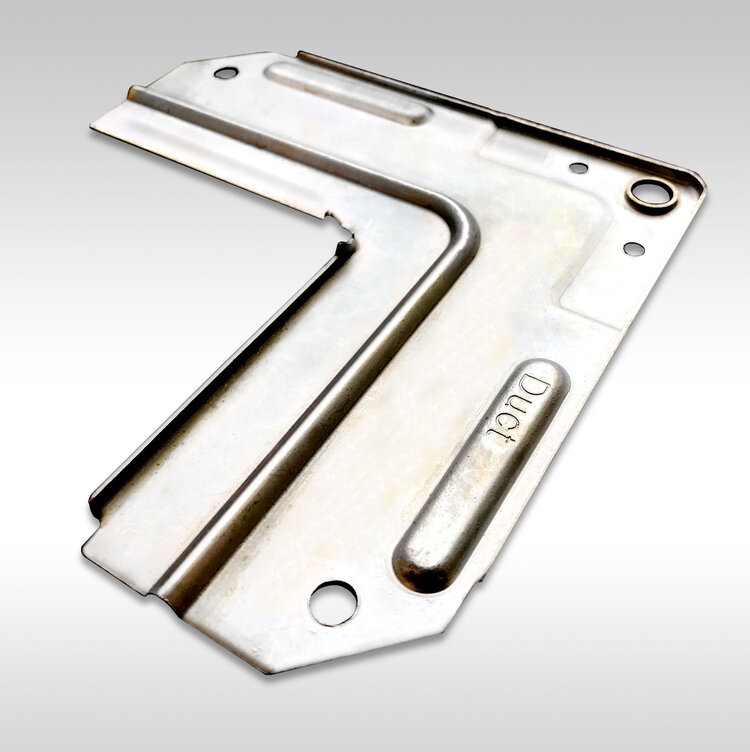

  • PRE-INSULATED DUCTWORK JOINTING SYSTEM CORNER
    PRE-INSULATED DUCTWORK JOINTING SYSTEM CORNER
    • IDC22 - 1.0mm gauge corner piece
    • IDC30 - 1.0mm gauge corner piece
  • DV SPECIALIST DUCTWORK JOINTING PROFILES

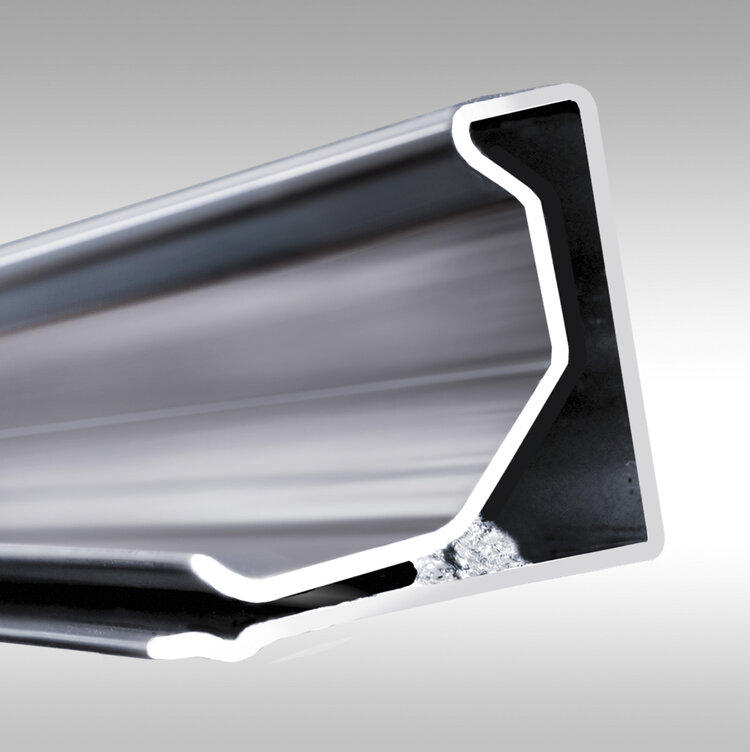

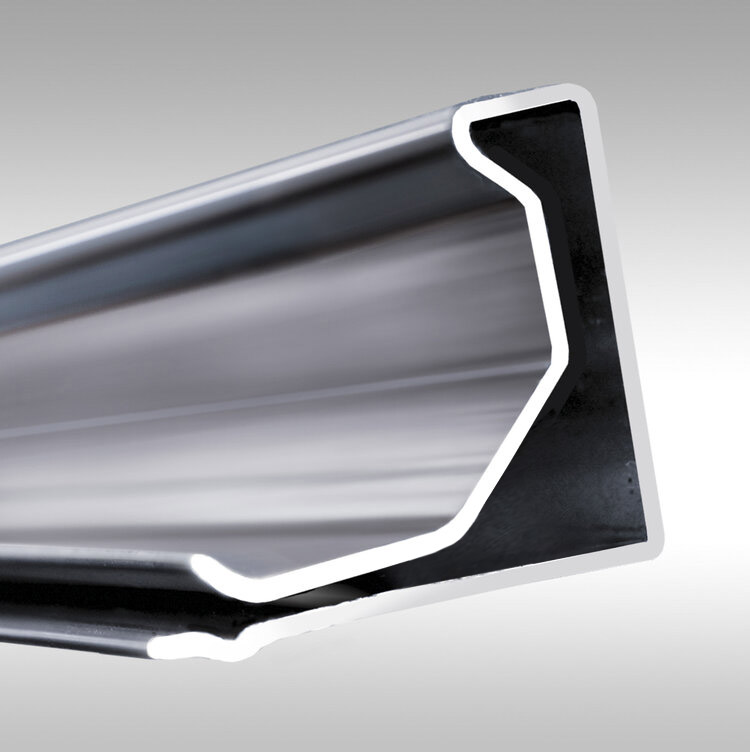

    DV SPECIALIST DUCTWORK JOINTING PROFILES
    • Provides for rapid assembly of cross joints.
    • Produced as standard in 304L/316L Stainless Steel, 1050 Aluminium can be used at the customers request.
    • Available in standard metric sizes of 20mm, 30mm and 40mm.
    • Permanently flexible non-toxic sealant available.
    • Full range of accessories to suit all sizes of flange.
    • Precision rolled profiles for specialist applications where standard galvanised steel systems are not appropriate, such as Pharmaceutical, Clean Rooms and Corrosive atmospheres.
  • DV SPECIALIST DUCTWORK JOINTING CORNERS
    DV SPECIALIST DUCTWORK JOINTING CORNERS
    • VF20C - 2.5mm gauge corner piece
    • VF320C - 3.0mm gauge corner piece
    • VF420C - 4.95mm gauge corner piece
    • Steel Grade EN 10111:1998-DD11 Pickled & Oiled Finish - Zinc and clear passivate to BS EN 12329-Fe/Zn5/A.
  • FACT SHEET - SLIDE ON FLANGE DUCT JOINTS
    FACT SHEET - SLIDE ON FLANGE DUCT JOINTS

    These are technical fact sheets covering a few of our products. For further information beyond what you can find in the sheets, then please call our sales office on: +44 1207 288012

  • FACT SHEET - DOBY 45 DUCT JOINTING PROFILE
    FACT SHEET - DOBY 45 DUCT JOINTING PROFILE

    These are technical fact sheets covering a few of our products. For further information beyond what you can find in the sheets, then please call our sales office on: +44 1207 288012
