Duct Access Doors

Easyfit Access Doors are supplied in two distinct types, ‘Tabbed Access Doors’ and ‘Curved Access Doors’ depending on the application. Tabbed Access Doors are for use with rectangular ductwork, where the application surface is flat, Curved Access Doors are for circular ductwork. Either door will provide easy access to duct installations for inspection and maintenance.

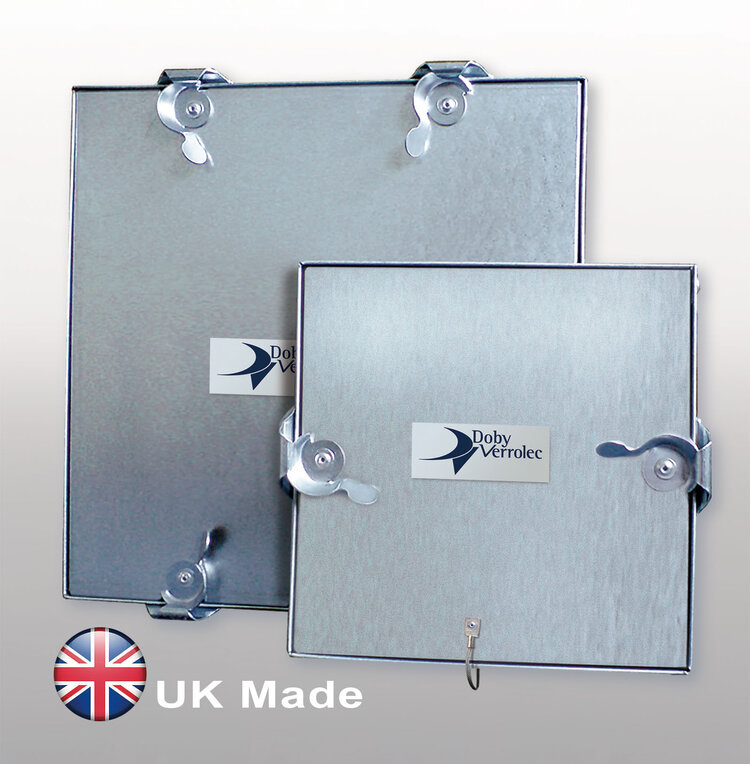

Both door types pressure tested Independently by BSRIA & Northumbria University. They are suitable for all low, medium or high-pressure applications, (to 2000pa positive). Tabbed access doors come with a fully Z275G galvanised steel coating or stainless steel, including the locking cams. Fully conforms to BESA DW142 regulations. Both Easyfit applications require no further sealant or extra fixings to produce an airtight seal. Rounded tabs are supplied for safety on the Tabbed doors, they also also come complete with a door retaining wire as standard, (can be supplied without a retaining wire upon request). The wire is not designed to be used as the doors’ only point of support.

  • TABBED DUCT ACCESS DOORS 100MM - 600MM DOOR SIZE (SQUARE)
    TABBED DUCT ACCESS DOORS 100MM - 600MM DOOR SIZE (SQUARE)
    • Reference & door size: ADTR10 100 x 100mm
    • Reference & door size: ADTR15 150 x 150mm (Stock size)
    • Reference & door size: ADTR20 200 x 200mm (Stock size)
    • Reference & door size: ADTR25 250 x 250mm (Stock size)
    • Reference & door size: ADTR30 300 x 300mm (Stock size)
    • Reference & door size: ADTR35 350 x 350mm
    • Reference & door size: ADTR40 400 x 400mm
    • Reference & door size: ADTR45 450 x 450mm (Stock size)
    • Reference & door size: ADTR50 500 x 500mm (Stock size)
    • Reference & door size: ADTR60 600 x 600mm

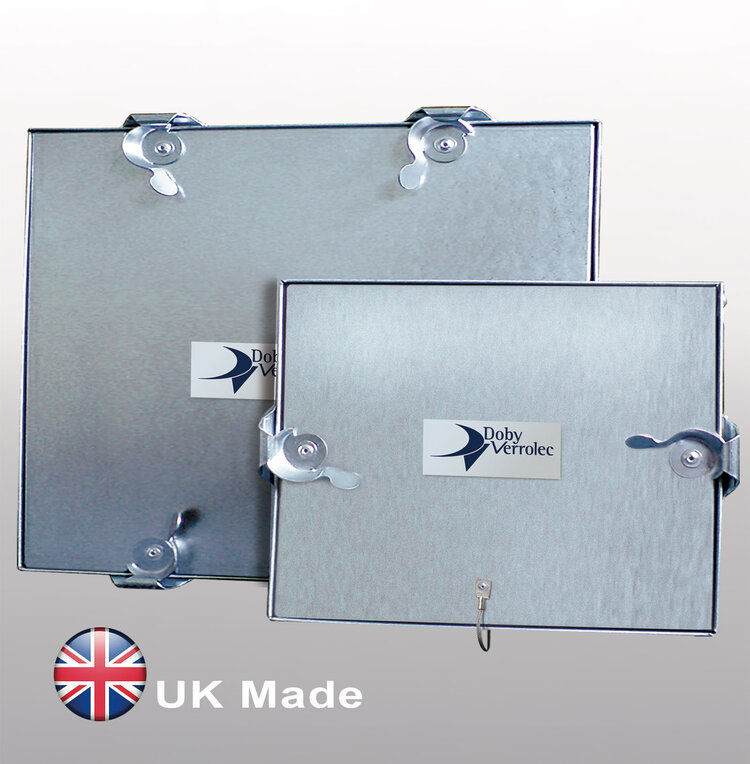

  • TABBED DUCT ACCESS DOORS 100MM - 600MM DOOR SIZE (RECTANGLE)
    TABBED DUCT ACCESS DOORS 100MM - 600MM DOOR SIZE (RECTANGLE)
    • Reference & door size: ADTR105 100 x 150mm
    • Reference & door size: ADTR12 100 x 200mm
    • Reference & door size: ADTR152 150 x 200mm
    • Reference & door size: ADTR153 150 x 300mm
    • Reference & door size: ADTR23 200 x 300mm (Stock size)
    • Reference & door size: ADTR34 300 x 450mm
    • Reference & door size: ADTR36 300 x 600mm (Stock size)
    • Reference & door size: ADTR24 400 x 200mm (Stock size)
    • Reference & door size: ADTR46 400 x 600mm

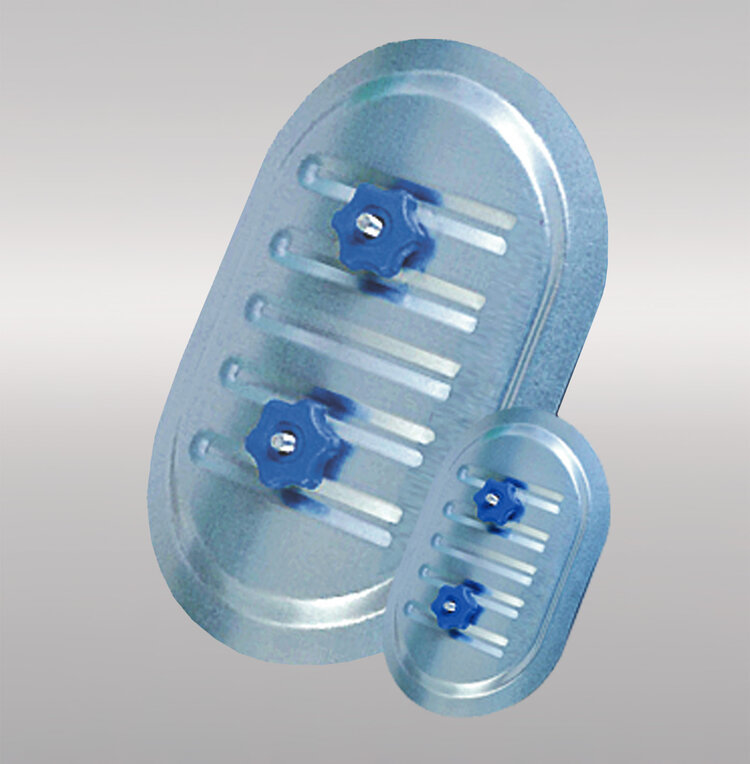

  • CURVED ACCESS DOORS
    CURVED ACCESS DOORS
    • Reference: EF1810 - EF1830 Curved duct diameter 100mm - 300mm. Door: 180 x 80mm
    • Reference: EF2515 - EF2550 Curved duct diameter 150mm - 500mm. Door: 250 x 150mm
    • Reference: EF3031 - EF3063 Curved duct diameter 315mm - 630mm. Door: 300 x 200mm
    • Reference: EF4040 - EF4090 Curved duct diameter 400mm - 900mm. Door: 400 x 300mm
    • Reference: EF5063 - EF50125 Curved duct diameter 500mm - 400mm. Door: 500 x 400mm
    • Reference: EF6071 - EF60160 Curved duct diameter 710mm - 1600mm. Door: 600 x 450mm
